1S SERVO

Omron Türkiye / Servo Sürücü ve Motor /

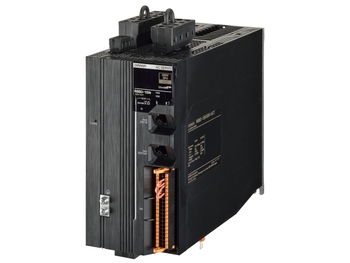

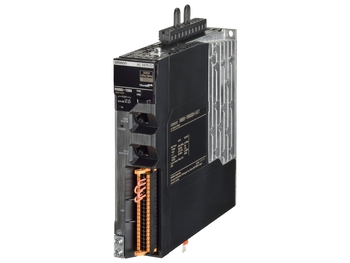

         Makinenin gereksinimlerini karşılaması amacıyla tasarlanan 1S servo teknolojisi; makine tasarımı, montaj ve devreye alma aşamalarındaki avantajları ile bakım dahil tüm döngüyü optimize eder. Geleneksel hareket çözümüne ek olarak 1S servo, pil kullanımı olmadan yüksek çözünürlüklü çok dönüşlü enkoder, dahili güvenlik ağı ve iyileştirilmiş döngü kontrolü sunarak doğru ve daha yüksek makine verimliliğine olanak tanır.

  • Optimize edilmiş montaj ve kurulum
  • Artırılmış makine verimliliği
  • Global erişilebilirlik ve global uyumluluk
  • 100 W - 3 kW güç aralığı - 200/400 V
  • 23 bit yüksek çözünürlüklü enkoder
  • Pilsiz mutlak çok dönüşlü enkoder
  • Düşük aşım ve hızlı ayar süresi için iyileştirilmiş döngü kontrolü
  • Dahili güvenlik işlevi
  • Ağ Güvenli Tork Kapalı: PLd (EN ISO 13849-1), SIL2 (IEC 61508)
  • Fiziksel Bağlantılı Güvenli Tork Kapalı: PLe (EN ISO 13849-1), SIL3 (IEC 61508)

Ürünler
Döküman
Teknik Bilgiler
Resim
Video
Ürünler
Döküman
Teknik Bilgiler

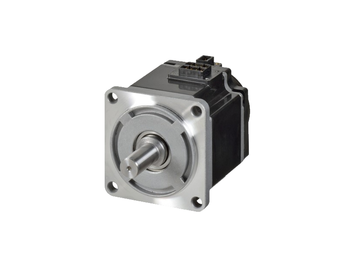

Servo motors




Servo motors 3000 r/min (100 W to 3 kW)




Symbol

Specifications

Compatible 1S servo drive

Order code

Voltage

Encoder and design

Rated torque

Capacity

Flange size

①

230 V

Incremental encoder

Without brake

0.318 Nm

100 W

40 mm

R88D-1SN01H-ECT

R88M-1M10030H-S2

(23-bit)Straight shaft with

0.637 Nm

200 W

60 mm

R88D-1SN02H-ECT

R88M-1M20030H-S2

key and tap

1.27 Nm

400 W

R88D-1SN04H-ECT

R88M-1M40030H-S2


2.39 Nm

750 W

80 mm

R88D-1SN08H-ECT

R88M-1M75030H-S2


3.18 Nm

1 kW

100 mm

R88D-1SN15H-ECT

R88M-1L1K030H-S2


4.77 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1L1K530H-S2


With brake

0.318 Nm

100 W

40 mm

R88D-1SN01H-ECT

R88M-1M10030H-BS2


0.637 Nm

200 W

60 mm

R88D-1SN02H-ECT

R88M-1M20030H-BS2


1.27 Nm

400 W

R88D-1SN04H-ECT

R88M-1M40030H-BS2


2.39 Nm

750 W

80 mm

R88D-1SN08H-ECT

R88M-1M75030H-BS2


3.18 Nm

1 kW

100 mm

R88D-1SN15H-ECT

R88M-1L1K030H-BS2


4.77 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1L1K530H-BS2

Absolute encoder

Without brake

0.159 Nm

50 W

40 mm

R88D-1SN01H-ECT

R88M-1M05030T-S2

(23-bit)Straight shaft with

0.318 Nm

100 W

R88D-1SN01H-ECT

R88M-1M10030T-S2

key and tap

0.637 Nm

200 W

60 mm

R88D-1SN02H-ECT

R88M-1M20030T-S2


1.27 Nm

400 W

R88D-1SN04H-ECT

R88M-1M40030T-S2


2.39 Nm

750 W

80 mm

R88D-1SN08H-ECT

R88M-1M75030T-S2


3.18 Nm

1 kW

100 mm

R88D-1SN15H-ECT

R88M-1L1K030T-S2


4.77 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1L1K530T-S2


With brake

0.159 Nm

50 W

40 mm

R88D-1SN01H-ECT

R88M-1M05030T-BS2


0.318 Nm

100 W

R88D-1SN01H-ECT

R88M-1M10030T-BS2


0.637 Nm

200 W

60 mm

R88D-1SN02H-ECT

R88M-1M20030T-BS2


1.27 Nm

400 W

R88D-1SN04H-ECT

R88M-1M40030T-BS2


2.39 Nm

750 W

80 mm

R88D-1SN08H-ECT

R88M-1M75030T-BS2


3.18 Nm

1 kW

100 mm

R88D-1SN15H-ECT

R88M-1L1K030T-BS2


4.77 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1L1K530T-BS2

400 V



Without brake

2.39 Nm

750 W

R88D-1SN10F-ECT

R88M-1L75030C-S2


3.18 Nm

1 kW

R88D-1SN10F-ECT

R88M-1L1K030C-S2


4.77 Nm

1.5 kW

R88D-1SN15F-ECT

R88M-1L1K530C-S2


6.37 Nm

2 kW

R88D-1SN20F-ECT

R88M-1L2K030C-S2


9.55 Nm

3 kW

130 mm

R88D-1SN30F-ECT

R88M-1L3K030C-S2


With brake

2.39 Nm

750 W

100 mm

R88D-1SN10F-ECT

R88M-1L75030C-BS2


3.18 Nm

1 kW

R88D-1SN10F-ECT

R88M-1L1K030C-BS2


4.77 Nm

1.5 kW

R88D-1SN15F-ECT

R88M-1L1K530C-BS2


6.37 Nm

2 kW

R88D-1SN20F-ECT

R88M-1L2K030C-BS2


9.55 Nm

3 kW

130 mm

R88D-1SN30F-ECT

R88M-1L3K030C-BS2


Servo motors 2000 r/min (400 W to 3 kW)




Symbol

Specifications

Compatible 1S servo drive

Order code

Voltage

Encoder and design

Rated torque

Capacity

Flange size

①

230 V

Incremental encoder

Without brake

4.77 Nm

1 kW

130 mm

R88D-1SN15H-ECT

R88M-1M1K020H-S2

(23-bit)Straight shaft with

7.16 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1M1K520H-S2

key and tap

With brake

4.77 Nm

1 kW

R88D-1SN15H-ECT

R88M-1M1K020H-BS2


7.16 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1M1K520H-BS2

Absolute encoder

Without brake

4.77 Nm

1 kW

R88D-1SN15H-ECT

R88M-1M1K020T-S2

(23-bit)Straight shaft with

7.16 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1M1K520T-S2

key and tap

With brake

4.77 Nm

1 kW

R88D-1SN15H-ECT

R88M-1M1K020T-BS2


7.16 Nm

1.5 kW

R88D-1SN15H-ECT

R88M-1M1K520T-BS2

400 V



Without brake

1.91 Nm

400 W

100 mm

R88D-1SN06F-ECT

R88M-1M40020C-S2


2.86 Nm

600 W

R88D-1SN06F-ECT

R88M-1M60020C-S2


4.77 Nm

1 kW

130 mm

R88D-1SN10F-ECT

R88M-1M1K020C-S2


7.16 Nm

1.5 kW

R88D-1SN15F-ECT

R88M-1M1K520C-S2


9.55 Nm

2 kW

R88D-1SN20F-ECT

R88M-1M2K020C-S2


14.3 Nm

3 kW

R88D-1SN30F-ECT

R88M-1M3K020C-S2


With brake

1.91 Nm

400 W

100 mm

R88D-1SN06F-ECT

R88M-1M40020C-BS2


2.86 Nm

600 W

R88D-1SN06F-ECT

R88M-1M60020C-BS2


4.77 Nm

1 kW

130 mm

R88D-1SN10F-ECT

R88M-1M1K020C-BS2


7.16 Nm

1.5 kW

R88D-1SN15F-ECT

R88M-1M1K520C-BS2


9.55 Nm

2 kW

R88D-1SN20F-ECT

R88M-1M2K020C-BS2


14.3 Nm

3 kW

R88D-1SN30F-ECT

R88M-1M3K020C-BS2


Servo motors 1000 r/min (900 W to 3 kW)




Symbol

Specifications

Compatible 1S servo drive

Order code

Voltage

Encoder and design

Rated torque

Capacity

Flange size

①

230 V

Absolute encoder

Without brake

8.59 Nm

900 W

130 mm

R88D-1SN15H-ECT

R88M-1M90010T-S2

(23-bit)Straight shaft with

With brake

8.59 Nm

900 W

R88D-1SN15H-ECT

R88M-1M90010T-BS2

400 V

key and tap

Without brake

8.59 Nm

900 W

R88D-1SN10F-ECT

R88M-1M90010C-S2


19.1 Nm

2 kW

180 mm

R88D-1SN20F-ECT

R88M-1M2K010C-S2


28.7 Nm

3 kW

R88D-1SN30F-ECT

R88M-1M3K010C-S2


With brake

8.59 Nm

900 W

130 mm

R88D-1SN10F-ECT

R88M-1M90010C-BS2


19.1 Nm

2 kW

180 mm

R88D-1SN20F-ECT

R88M-1M2K010C-BS2


28.7 Nm

3 kW

R88D-1SN30F-ECT

R88M-1M3K010C-BS2


Encoder cables




Symbol

Appearance

Specifications

Order code



③



Encoder cable for servo motors

1.5 m

R88A-CR1A001-5CF-E



R88M-1M05030T-_

3 m

R88A-CR1A003CF-E



R88M-1M(100/200/400/750)30(H/T)-_

5 m

R88A-CR1A005CF-E




10 m

R88A-CR1A010CF-E




15 m

R88A-CR1A015CF-E




20 m

R88A-CR1A020CF-E




Encoder cable for servo motors

1.5 m

R88A-CR1B001-5NF-E



R88M-1L(1K0/1K5)30(H/T)-_



R88M-1L(750/1K0/1K5/2K0/3K0)30C-_

3 m

R88A-CR1B003NF-E



R88M-1M(1K0/1K5)20(H/T)-_

5 m

R88A-CR1B005NF-E

<
