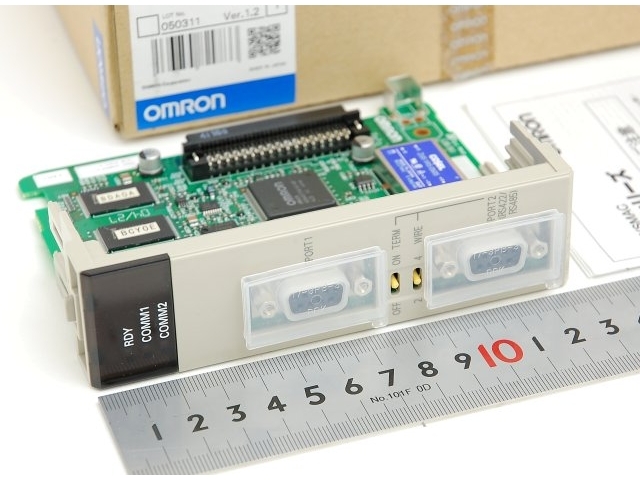

Omron CS1W-SCB21-V1
Omron CS1W-SCB21-V1 özellikleri
Ürün Fiyatı:
Stok Durumu: Stokta Var
Haberleşme Tipi : Seri
Portlar : 2 x RS-232C
Protokoller : CompoWay/F, Host Link, NT link, Modbus, Kullanıcı tanımlı
Ünite sınıfı : CPU opsiyon kartı
Bağlantı tipi : 9 pin D-Sub
» Omron CS Serisi Haberleşme Üniteleri tüm ürünleri
Teknik Bilgiler
Döküman
Resim
Video
Teknik Bilgiler
| Tip | Portlar Protokoller | Ünite sınıfı | Açıklamalar | Bağlantı tipi | Sipariş kodu | ||
| Serial | 2 × RS-232C | CompoWay/F, Host Link, NT link, Modbus, User-defined | CPU bus unit | – | 9-pin D-Sub | CS1W-SCU21-V1 | |
| Serial | 2 × RS-232C/RS-485 | CompoWay/F, Host Link, NT link, Modbus, User-defined | CPU bus unit | – | 9-pin D-Sub | CS1W-SCU31-V1 | |
| Serial | 2 × RS-232C | CompoWay/F, Host Link, NT link, Modbus, User-defined | CPU option board | – | 9-pin D-Sub | CS1W-SCB21-V1 | |
| Serial | 1 × RS-232C + 1 × RS-422/RS-485 |
CompoWay/F, Host Link, NT link, Modbus, User-defined | CPU option board | – | 9-pin D-Sub | CS1W-SCB41-V1 | |
| GP-IB | Master/Slave selectable | GP-IB instrument communication | Special I/O unit | – | GP-IB | CS1W-GPI01 | |
| Ethernet | 1 × 100 Base-Tx | UDP, TCP/IP, FTP server, SMTP (e-mail), SNTP (time adjust), FINS routing, socket service |
CPU bus unit | – | RJ45 | CS1W-ETN21 | |
| Controller link | 2-wire twisted pair | Omron proprietary | CPU bus unit | – | 2-wire screw + GND | CS1W-CLK23 | |
| Optical HPCF | – | 2 × HPCF connector | CS1W-CLK13 | ||||
| Optical graded-index fiber | – | 4 × ST connector | CS1W-CLK53 | ||||
| EtherNet/IP | 1 × 100 Base-Tx | EtherNet/IP, UDP, TCP/IP, FTP server, SNTP, SNMP | CPU Bus unit | 31 mm | RJ45 | CS1W-EIP21 | |
| DeviceNet | 1 × CAN | DeviceNet | CPU bus unit | – | 5-p detachable | CS1W-DRM21-V1 | |
| CompoNet | 4-wire, data + power to slaves (Master) | CompoNet (CIP-based) | Special I/O unit | – | 4-p detachable IDC or screw | CS1W-CRM21 | |
| CompoBus/S | 2-wire (Master) | Omron proprietary | Special I/O unit | – | 2-wire screw + 2-wire power | CS1W-SRM21 | |
| PROFIBUS-DP | 1 × RS-485 (Master) | DP, DPV1 | CPU bus unit | – | 9-pin D-Sub | CS1W-PRM21 | |
| CAN | 1 × CAN | CANopen, User-defined | CPU bus unit | – | 5-p detachable | CS1W-CORT21 | |
| PROFINET IO | 1 × 100 Base-Tx PROFINET IO controller | FINS UDP | CPU bus unit | – | RJ45 | CS1W-PNT21 | |
| PROFIBUS-DP | 1 × RS-485 (Slave) | DP | C200H special I/O unit | C200H units cannot be used on CS1D systems | 9-pin D-Sub | C200HW-PRT21 | |
| Tanım | Bağlantı tipi | Sipariş kodu | |||||
| RS-232C to RS-422/RS-485 signal converter. Mounts directly on serial port. | 9-pin D-sub to screw clamp terminals | CJ1W-CIF11 | |||||
| Controller link PCI board with support software | PCI, wired CLK | 3G8F7-CLK23-E | |||||
| Controller link PCI board with support software | PCI, HPCF connectors | 3G8F7-CLK13-E | |||||
| Controller link PCI board with support software | PCI, ST connectors | 3G8F7-CLK53-E | |||||
| Controller link repeater unit (wire to wire) | Screw - Screw | CS1W-RPT01 | |||||
| Controller link repeater unit (wire to HPCF fiber) | Screw - HPCF connector | CS1W-RPT02 | |||||
| Controller link repeater unit (wire to graded-index glass fiber) | Screw - ST connector | CS1W-RPT03 | |||||
| PROFIBUS DP to RS-422/RS-485 Serial Gateway. User-configurable, with Omron protocols built-in. | 9-pin D-sub to screw clamp terminals | PRT1-SCU11 | |||||
| PROFINET IO + ModBus/TCP to Modbus/RTU (RS-485) Gateway. | 3 × RJ45 to screw clamp terminals | EJ1N-HFU-ETN | |||||
